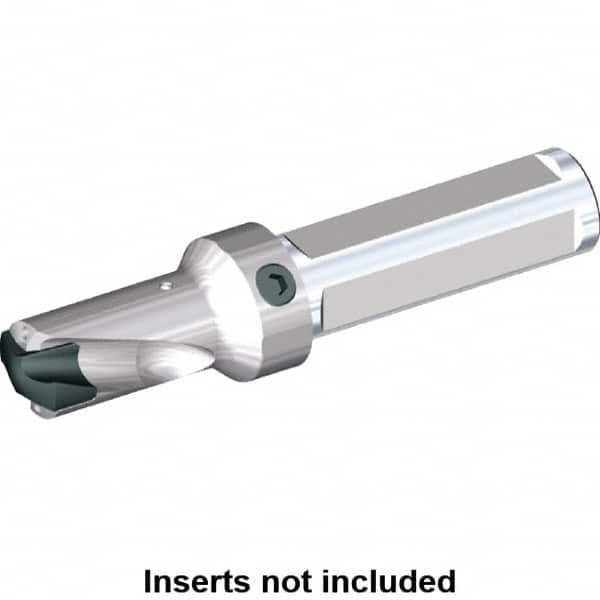

Kennametal - 24 to 26mm Diam, 1xD, 25.91mm Max Depth, 1" Shank Diam, 45.47mm Flute, 142.88mm OAL, Replaceable Tip Drill - KSEM2450 Insert, 5 Seat Size, Series KSEM
Item #: 82698499
Brand: Kennametal
Model #: 1792228
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 24.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Diameter (mm) | 26.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.0236 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.0200 |
| Maximum Drill Depth (mm) | 25.91 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | KSEM2450 |
| Insert Seat Size | 5 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1500 |
| Flute Length (mm) | 45.47 |
| Flute Length (Decimal Inch) | 1.7902 |
| Body Length (Decimal Inch) | 2.6300 |
| Overall Length (mm) | 142.88 |
| Overall Length (Decimal Inch) | 5.6252 |
| Shank Length (Decimal Inch) | 3.0000 |
