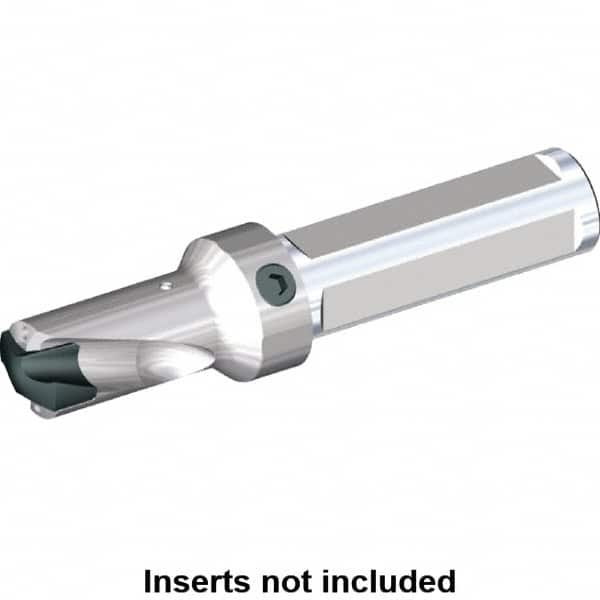

Kennametal - 28.02 to 30mm Diam, 1xD, 29.97mm Max Depth, 1-1/4" Shank Diam, 51.54mm Flute, 157.16mm OAL, Replaceable Tip Drill - KSEM1109 Insert, 7 Seat Size, Series KSEM
Item #: 82698515
Brand: Kennametal
Model #: 1792230
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 28.02 |
| Minimum Drill Diameter (Decimal Inch) | 1.1031 |
| Maximum Drill Diameter (mm) | 30.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.1811 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.1800 |
| Maximum Drill Depth (mm) | 29.97 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | KSEM1109 |
| Insert Seat Size | 7 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1700 |
| Flute Length (mm) | 51.54 |
| Flute Length (Decimal Inch) | 2.0291 |
| Body Length (Decimal Inch) | 2.9400 |
| Overall Length (mm) | 157.16 |
| Overall Length (Decimal Inch) | 6.1874 |
| Shank Length (Decimal Inch) | 3.2500 |
