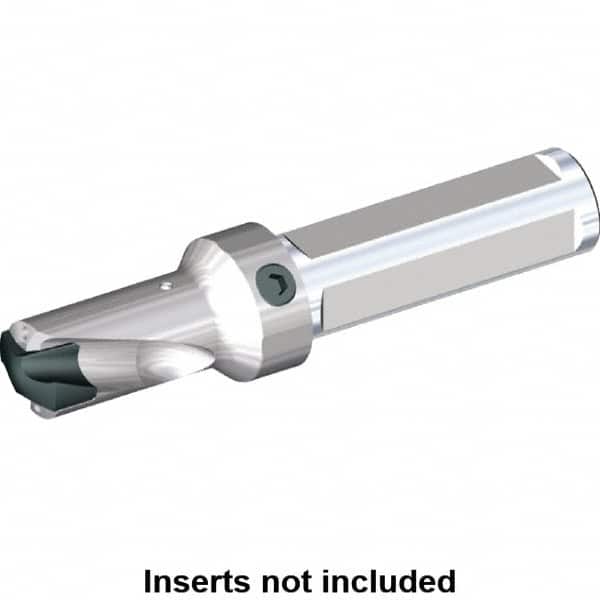

Kennametal - 32 to 36mm Diam, 1xD, 36.07mm Max Depth, 1-1/4" Shank Diam, 60.6mm Flute, 165.1mm OAL, Replaceable Tip Drill - KSEM3250 Insert, 9 Seat Size, Series KSEM
Item #: 82698531
Brand: Kennametal
Model #: 1792232
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 32.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.2598 |
| Maximum Drill Diameter (mm) | 36.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.4173 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.4200 |
| Maximum Drill Depth (mm) | 36.07 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | KSEM3250 |
| Insert Seat Size | 9 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1900 |
| Flute Length (mm) | 60.60 |
| Flute Length (Decimal Inch) | 2.3858 |
| Body Length (Decimal Inch) | 3.2500 |
| Overall Length (mm) | 165.10 |
| Overall Length (Decimal Inch) | 6.5000 |
| Shank Length (Decimal Inch) | 3.2500 |
