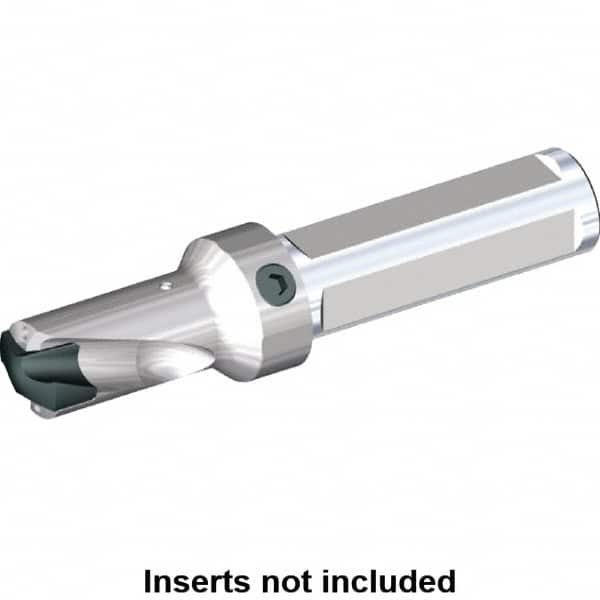

Kennametal - 14.5 to 15.87mm Diam, 1xD, 16mm Max Depth, 3/4" Shank Diam, 28.75mm Flute, 101.6mm OAL, Replaceable Tip Drill - KSEM0578 Insert, A Seat Size, Series KSEM
Item #: 82698572
Brand: Kennametal
Model #: 1792256
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 14.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.5709 |
| Maximum Drill Diameter (mm) | 15.87 |
| Maximum Drill Diameter (Decimal Inch) | 0.6248 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.6300 |
| Maximum Drill Depth (mm) | 16.00 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0578 |
| Insert Seat Size | A |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.0900 |
| Flute Length (mm) | 28.75 |
| Flute Length (Decimal Inch) | 1.1319 |
| Body Length (Decimal Inch) | 2.0000 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Length (Decimal Inch) | 2.0000 |
