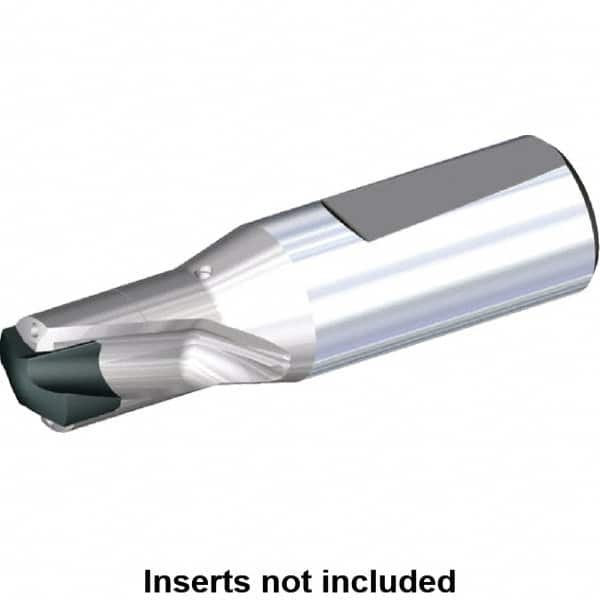

Kennametal - 12.5 to 13.5mm Diam, 1xD, 14mm Max Depth, 16mm Shank Diam, 25mm Flute, 78mm OAL, Replaceable Tip Drill - KSEM1250GDM Insert, C Seat Size, Series KSEM
Item #: 82698580
Brand: Kennametal
Model #: 1792258
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 12.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5315 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.5512 |
| Maximum Drill Depth (mm) | 14.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | KSEM1250GDM |
| Insert Seat Size | C |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 2.00 |
| Flute Length (mm) | 25.00 |
| Flute Length (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 78.00 |
| Shank Length (mm) | 48.00 |
