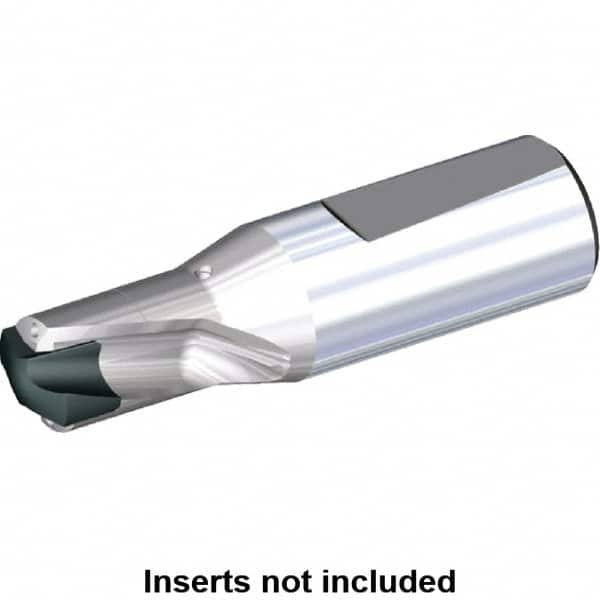

Kennametal - 13.51 to 14.5mm Diam, 1xD, 15mm Max Depth, 16mm Shank Diam, 29mm Flute, 81mm OAL, Replaceable Tip Drill - KSEM1351GDM Insert, B Seat Size, Series KSEM
Item #: 82698598
Brand: Kennametal
Model #: 1792259
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 13.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.5319 |
| Maximum Drill Diameter (mm) | 14.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5708 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.5906 |
| Maximum Drill Depth (mm) | 15.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | KSEM1351GDM |
| Insert Seat Size | B |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 2.20 |
| Flute Length (mm) | 29.00 |
| Flute Length (Decimal Inch) | 1.1417 |
| Overall Length (mm) | 81.00 |
| Shank Length (mm) | 48.00 |
