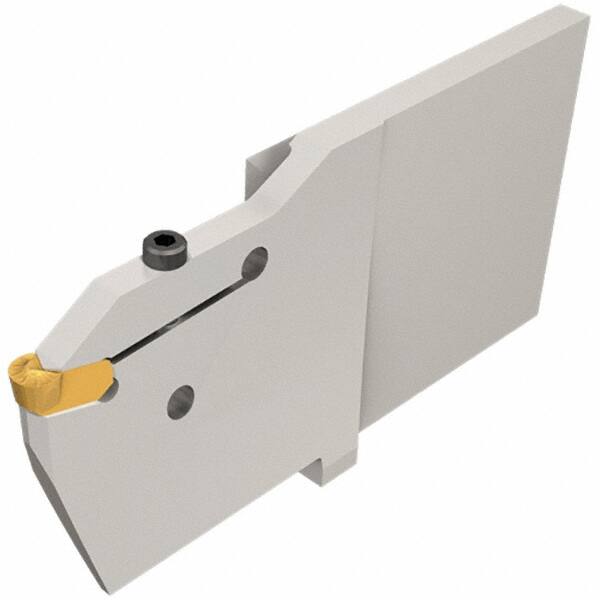

Iscar - 8" Groove Width, 80mm Max Depth of Cut, Right Hand Cut, CGFG Indexable Grooving Blade - GIMF, GIMM 8CC, GIMY, GIMY (Full Radius), GIMY-F Insert Style, Series Cut Grip
Item #: 82718420
Brand: Iscar
Model #: 2892463
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 8.00 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 80.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.1496 |
| Blade Style | CGFG |
| Series | Cut Grip |
| Minimum Workpiece Diameter (mm) | 240.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 9.4488 |
| Maximum Workpiece Diameter (mm) | 320.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 12.5984 |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 26.00 |
| Blade Width (Decimal Inch) | 1.0236 |
| Maximum Groove Width (mm) | 8.00 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 210.00 |
| Overall Length (Decimal Inch) | 8.2677 |
| Insert Style | GIMF; GIMM 8CC; GIMY; GIMY (Full Radius); GIMY-F |
| Complete Insert Compatibility | GIMF 808; GIMM 8CC; GIMY 808; GIMY 840; GIMY 840F |
