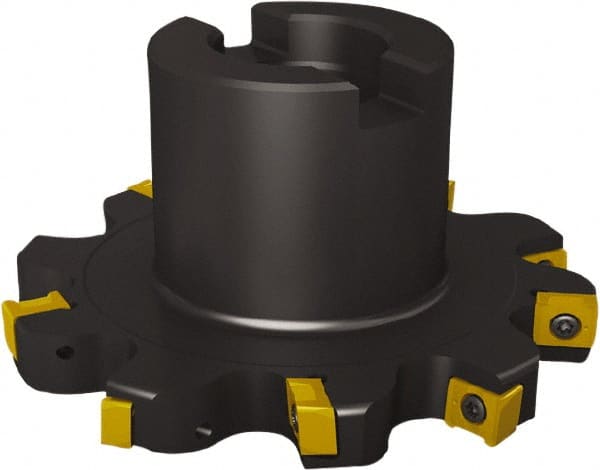

Seco - Shell Mount Connection, 5/16" Cutting Width, 1.38" Depth of Cut, 5" Cutter Diam, 1-1/4" Hole Diam, 6 Tooth Indexable Slotting Cutter - R335.18 Toolholder, LNK.. 05.. Insert, Right Hand Cutting Direction
Item #: 82741638
Brand: Seco
Model #: 29088
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Depth of Cut (Decimal Inch) | 1.3800 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 6 |
| Toolholder Style | R335.18 |
| Series | R335.18 |
| Insert Style | LNK.. 05.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8400 |
| Minimum Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Cutting Width (Decimal Inch) | 0.3120 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Radius | No |
| Complete Insert Compatibility1 | LNKT 050404PPN4-E05; LNKT 050404PPTN4-M06; LNKT 050408PPN4-E05; LNKT 050408PPTN4-M06; LNKT 050416PPTN4-M06; LNKT 050420PPTN4-M06; LNKT 050424PPTN2-M06; LNKT 050431PPTL1-M06; LNKT 050431PPTR1-M06; LNKW 050404PPN4-MD07; LNKW 050408PPN4-MD07 |
