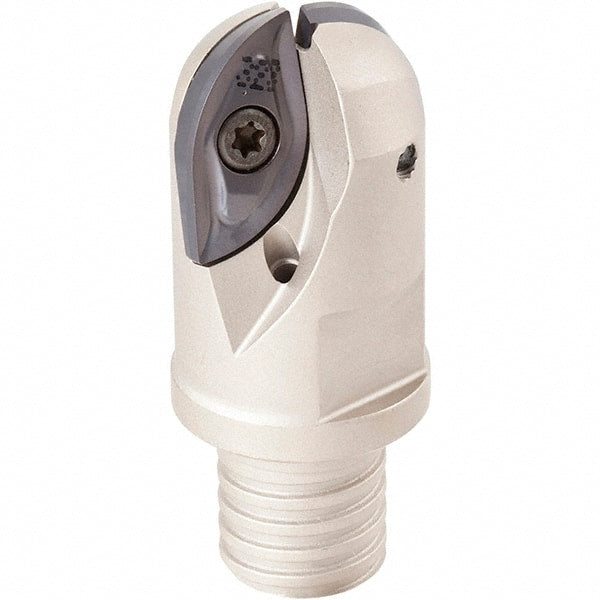

Iscar - 3/4" Cut Diam, 0.61" Max Depth of Cut, 1.92" OAL, Indexable Ball Nose End Mill - 1.38" Head Length, T12 Modular Connection, BCM-MM Toolholder, BCR... Insert
Item #: 82746009
Brand: Iscar
Model #: 3104293
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | T12 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR... |
| Toolholder Style | BCM-MM |
| Series | DropMill; Multimaster |
| Overall Length (Decimal Inch) | 1.9200 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.3800 |
| Neck Diameter (Decimal Inch) | 0.7200 |
