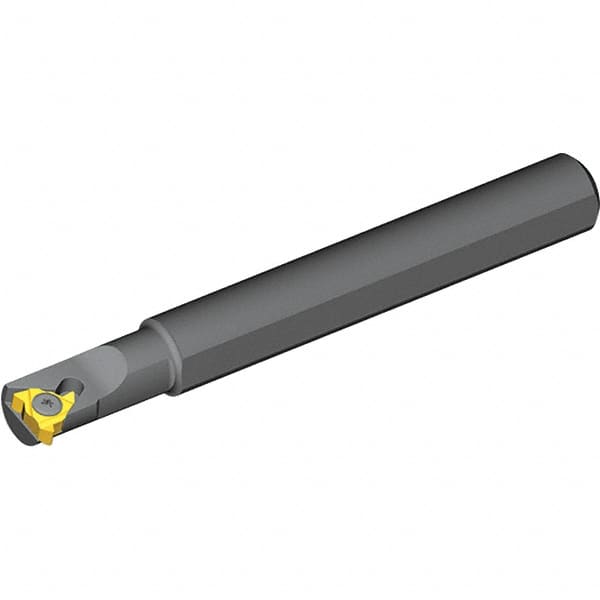

Vargus - Internal/External Thread, Right Hand Cut, 0.63" Shank Width x 0.6" Shank Height Indexable Threading Toolholder - 3.94" OAL, 2IR Insert Compatibility, OVR Toolholder, Series Miniature Round Shank
Item #: 82751058
Brand: Vargus
Model #: 66217
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal/External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6300 |
| Shank Height (Decimal Inch) | 0.6000 |
| Overall Length (Decimal Inch) | 3.9400 |
| Insert Compatibility | 2IR |
| Series | Miniature Round Shank |
| Toolholder Style | OVR |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 15.4000 |
| Neck Diameter (Decimal Inch) | 0.5118 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Minimum Bore Diameter (mm) | 16 |
