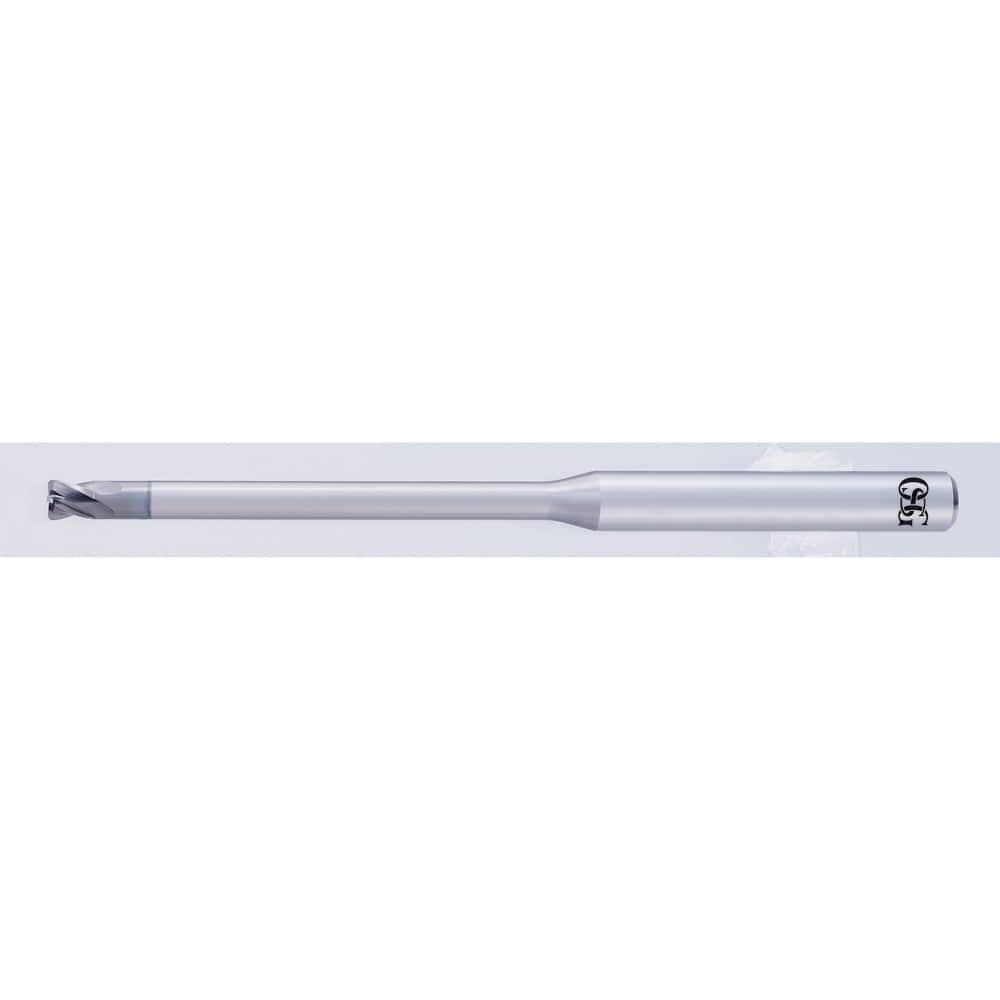

Corner Radius End Mill: 4 Flutes, Solid Carbide Helix, DUROREY Coated, Corner Radius End, Centercutting, Series 8592
Item #: 82842956
Brand: OSG
Model #: 8557599
Product Specifications
| Mill Diameter (mm) | 2.00 |
| Length of Cut (mm) | 1.60 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Long |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (mm) | 4.0000 |
| Neck Diameter (mm) | 1.92 |
| Overall Length (mm) | 60.00 |
| Corner Radius Tolerance | ?5.00000 um |
| Mill Diameter Tolerance | +0.000000 to -0.010000 mm |
| Shank Diameter Tolerance | h4 |
| Primary Workpiece Material | Hard Material; Steel |
| Primary Workpiece Material Code | H |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 8592 |
| Coating/Finish | DUROREY |
