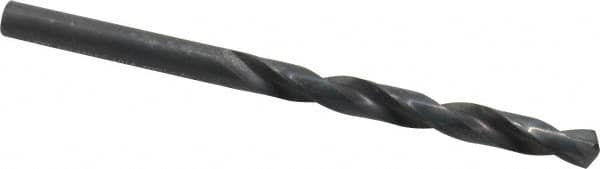

Jobber Length Drill Bit: 0.2656″ Dia, 118 °, Cobalt Oxide Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 305
Item #: 82875105
Brand: Guhring
Model #: 9003050067500
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2656 |
| Drill Bit Size (Inch) | 17/64 |
| Drill Bit Size (Letter) | H |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Oxide |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 109.00 |
| Flute Length (mm) | 69.00 |
| Series | 305 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 17/64 |
| Maximum Drilling Depth (Decimal Inch) | 2.3180 |
| Maximum Drilling Depth (mm) | 58.88 |
| Shank Length (mm) | 40.00 |
| Drill Bit Diameter Tolerance | -0.022 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Specification Number | DIN 338 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Specification Designation | DIN |
