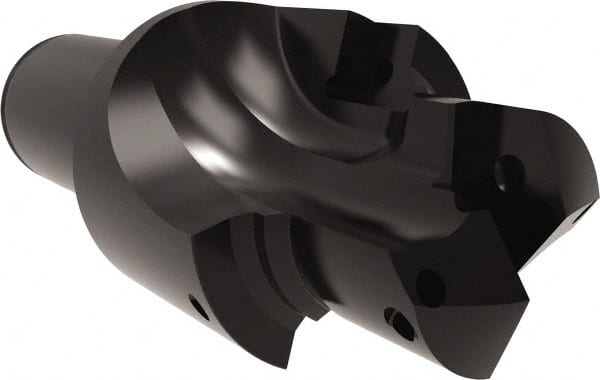

Allied Machine and Engineering - AND10050, MS 33649, SAE AS5202 Standard, 1-5/16-12, 16 Tube Dash Number, 60° Porting Angle, 1.336" Pilot Diam, 1-1/4" Shank Diam, Indexable Spade Blade Insert Porting Tool - 2 Porting Inserts, 5.046" Overall Length
Item #: 82877457
Brand: Allied Machine and Engineering
Model #: AS5202-162-125F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Port Standard Designation | AND10050; MS 33649; SAE AS5202 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 1-5/16-12 |
| Tube Dash Number | 16 |
| Pilot Diameter (Decimal Inch) | 1.3360 |
| Spotface Diameter (Decimal Inch) | 1.9200 |
| Pilot Length (Decimal Inch) | 0.1250 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | AS5202-16-C5A |
| Porting Diameter (Decimal Inch) | 1.4870 |
| Overall Length (Decimal Inch) | 5.0460 |
| Through Coolant | NonThrough Coolant |
| Porting Angle | 60 |
| Head Length (Decimal Inch) | 2.7650 |
| Shank Length (Decimal Inch) | 2.2810 |
| Spotface to Shoulder Length (Decimal Inch) | 1.4370 |
| Pre-Drill Size (Decimal Inch) | 1.2340 |
| Series | AccuPort 432 |
