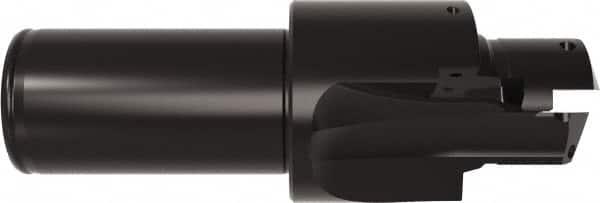

Allied Machine and Engineering - ISO 11926-1, MS 16142, SAE J1926-1 Standard, 1-1/16-12, 12 Tube Dash Number, 15° Porting Angle, 0.984" Pilot Diam, 1-1/4" Shank Diam, Indexable Spade Blade Insert Porting Tool - 2 Porting Inserts, 5.171" Overall Length
Item #: 82889841
Brand: Allied Machine and Engineering
Model #: X1926-122-125F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Port Standard Designation | ISO 11926-1; MS 16142; SAE J1926-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 1-1/16-12 |
| Tube Dash Number | 12 |
| Pilot Diameter (Decimal Inch) | 0.9840 |
| Spotface Diameter (Decimal Inch) | 1.6570 |
| Pilot Length (Decimal Inch) | 1.1560 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Porting Inserts | 2 |
| Porting Diameter (Decimal Inch) | 1.1500 |
| Overall Length (Decimal Inch) | 5.1710 |
| Through Coolant | NonThrough Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1380 |
| Head Length (Decimal Inch) | 2.8900 |
| Shank Length (Decimal Inch) | 2.2810 |
| Spotface to Shoulder Length (Decimal Inch) | 1.5300 |
| Series | AccuPort 432 |
