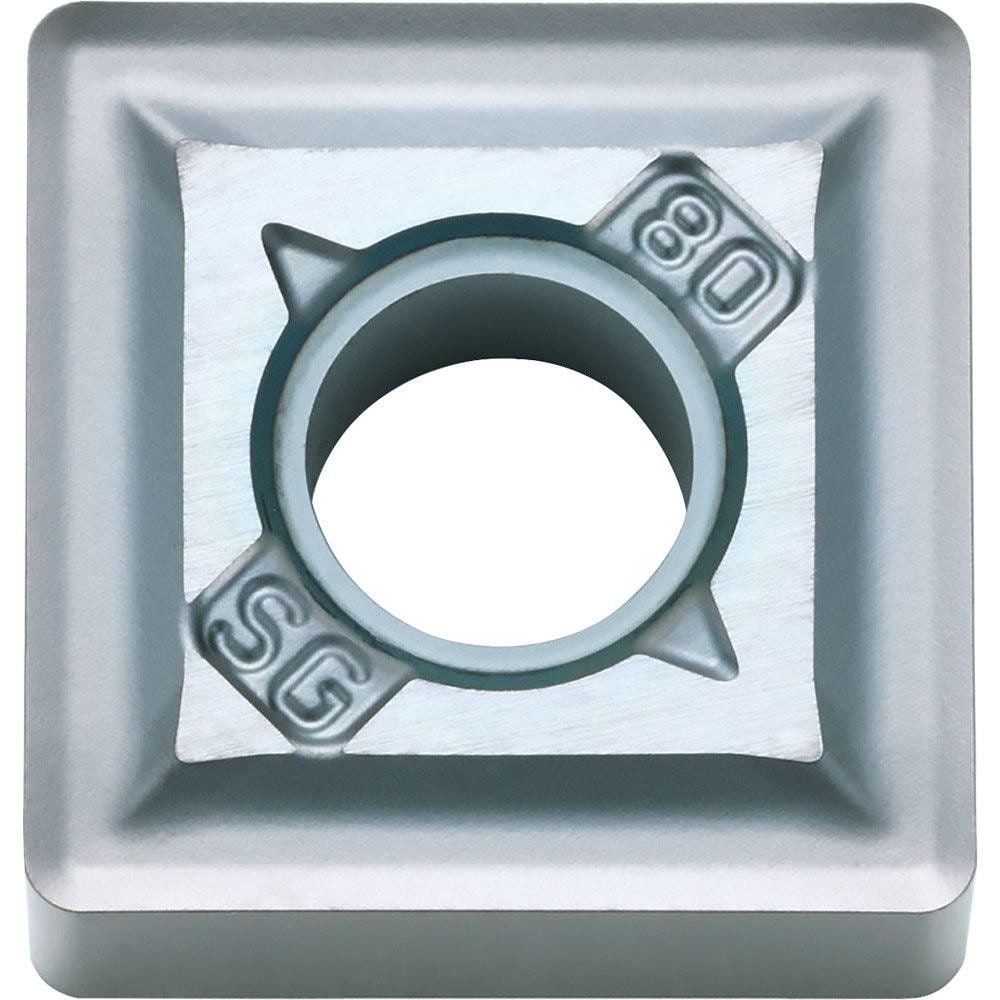

Turning Insert: SNMG543SG PR005S, Carbide
Item #: 06730063
Brand: Kyocera
Model #: TLH58661
Product Specifications
| ANSI Insert Code | SNMG543 |
| ISO Insert Code | SNMG150612 |
| Relief Angle | 0.000 |
| Insert Style | SNMG |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 90.00 |
| Manufacturer Grade | PR005S |
| Coating/Finish | MEGACOAT HARD |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Series | ISOI |
| Inscribed Circle (Inch) | 5/8 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Roughing |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.3500 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 5/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Inch) | 5/8 |
| Primary Workpiece Material | Heat-Resistant Alloy |
| Primary Workpiece Material Code | S |
| Iso Code | SNMG150612SG |
| Standards | PR005S |
| Manufacturers Catalog Number | SNMG543SGPR005S |
| Chip Breaker | SG |
| Cutting Edge Style | Double |
| Industry Standard Number | SNMG150612SG |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
| ANSI Size Code | 543 |
| ISO Size Code | 150612 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 543 |
