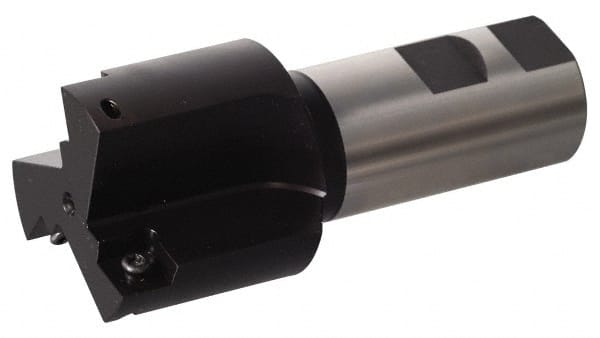

Kennametal - 1 Inch Diameter, Weldon Flat, 19.05 mm Shank Diameter, 2 Insert, Indexable Counterbore - 3-1/2 Inch Overall Length, SPHX 090304R. Insert
Item #: 82942038
Brand: Kennametal
Model #: 1992511
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Counterbore Diameter (mm) | 25.40 |
| Counterbore Diameter (Decimal Inch) | 1.0000 |
| Maximum Counterbore Depth (Decimal Inch) | 0.6562 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Counterbore Inserts | 2 |
| Insert Style | SPHX 090304R.. |
| Minimum Cutting Diameter (Decimal Inch) | 0.6562 |
| Overall Length (mm) | 88.91 |
| Overall Length (Decimal Inch) | 3.5004 |
| Number of Flutes | 2 |
| Toolholder Material | Steel |
| Shank Type | Weldon Flat |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Shank Length (mm) | 52.00 |
| Shank Length (Decimal Inch) | 2.0470 |
