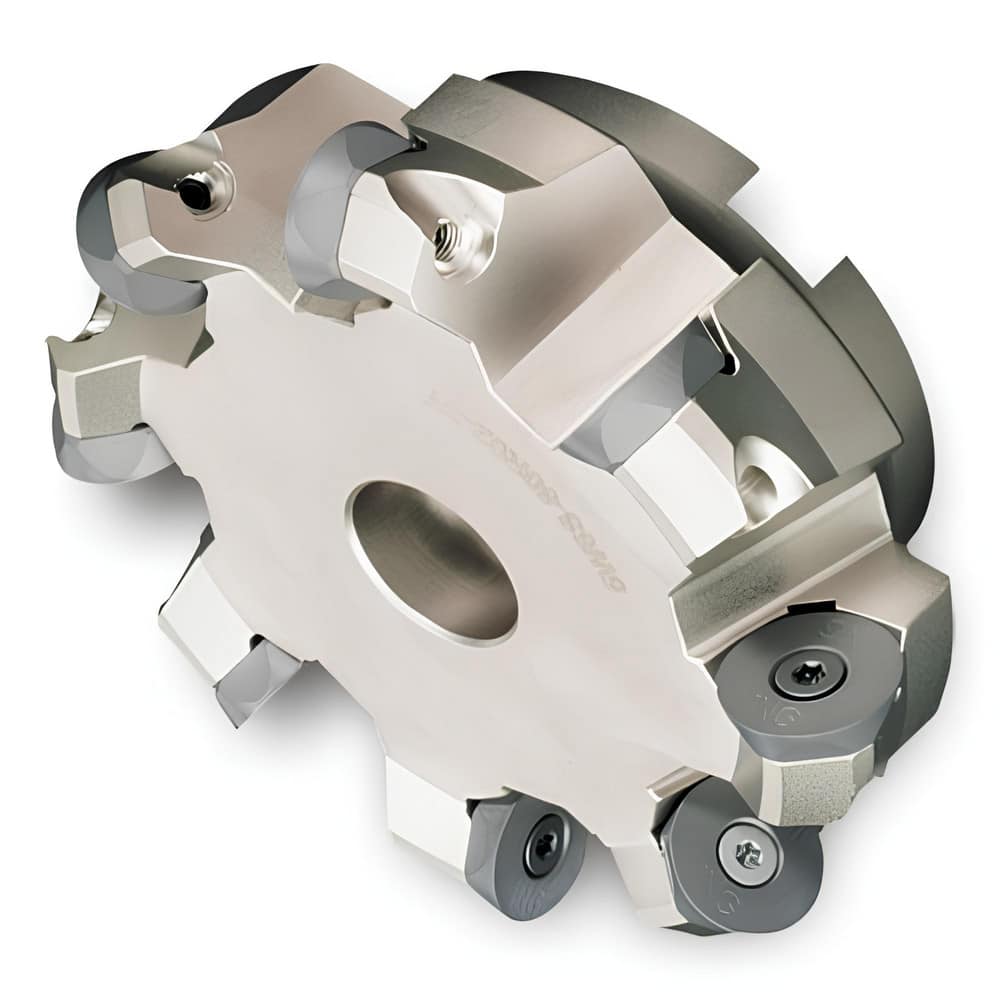

Indexable Copy Face Mills; Maximum Depth Of Cut: 0.2000 in; Compatible Insert Size Code: RPLB25; Arbor Hole Diameter (mm): 1.50; Maximum Ramping Angle: 3.5 ™; Overall Height (mm): 2.5000 in; Series: 5W6S; Number of Cutter Inserts: 8; Cutter Style: 5W6S;
Item #: 82945809
Brand: Ingersoll Cutting Tools
Model #: 3017081
Product Specifications
| Maximum Depth Of Cut | 0.2000 in |
| Compatible Insert Size Code | RPLB25 |
| Arbor Hole Diameter (mm) | 1.50 |
| Maximum Ramping Angle | 3.5 ? |
| Overall Height (mm) | 2.5000 in |
| Series | 5W6S |
| Number of Cutter Inserts | 8 |
| Cutter Style | 5W6S |
| Keyway Width | 15.8800 |
| Tool Application | Facing; Pocketing; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Through Coolant | None |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 15.8800 |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 6.0000 in |
| Minimum Cutting Diameter (Decimal Inch) | 5.0000 in |
