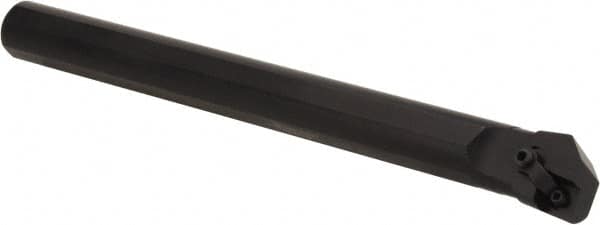

Walter - 1.28" Min Bore, Left Hand S-MCLN Indexable Boring Bar
Item #: 82967589
Brand: Walter
Model #: 55035
Product Specifications
| Toolholder Style | S-MCLN |
| Series | Negative Rake Common Hardware |
| Minimum Bore Diameter (Decimal Inch) | 1.2800 |
| Hand of Holder | Left Hand |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | CN.. 422 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | 5 |
| Complete Insert Compatibility | CN.. 432 |
| Toolholder Material | Steel |
