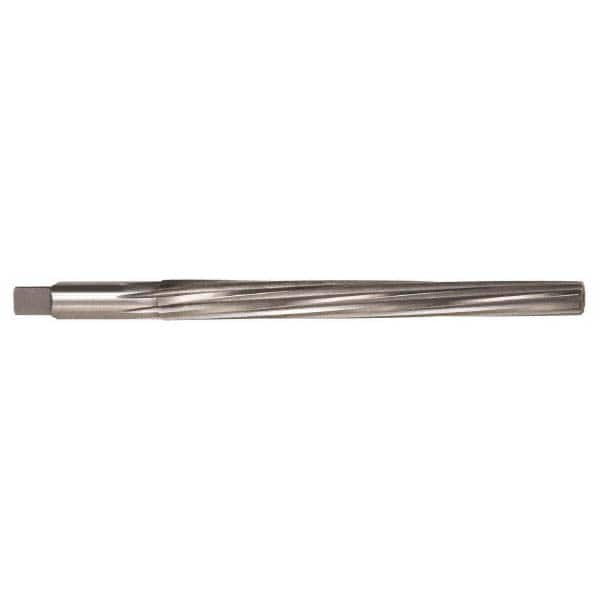

Alvord Polk - #3/0 Pin, 0.13" Diam, 0.1029" Small End, 0.1406" Diam Straight Shank, 1-5/16" Flute, Taper Pin Reamer
Item #: 70698626
Brand: Alvord Polk
Model #: 02804
Features and Benefits
Spiral flute reamers are used in blind and through-hole operations. They are able to bridge interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #3/0 |
| Small End Diameter (Decimal Inch) | 0.1029 |
| Reamer Diameter (Decimal Inch) | 0.1300 |
| Flute Type | Spiral |
| Shank Type | Straight |
| Overall Length (mm) | 59 |
| Overall Length (Inch) | 2.3120 |
| Flute Length (mm) | 33 |
| Flute Length (Inch) | 1.3120 |
| Number of Flutes | 4 |
| Shank Diameter (mm) | 3.57 |
| Shank Diameter (Inch) | 0.1406 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Mild Steel |
