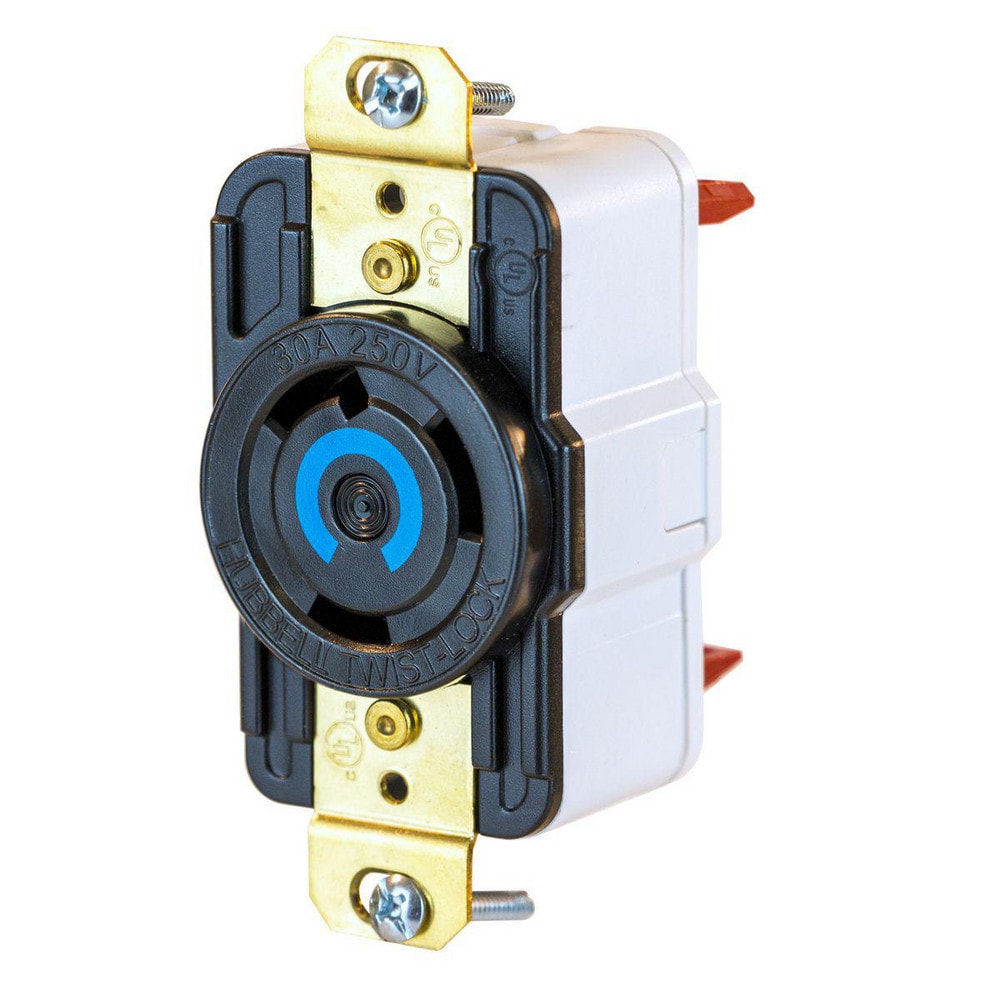

LKG RCPT, 30A 250V, L6-30R, BK, SPRING TERM
Item #: 02401172
Brand: Hubbell Wiring Device-Kellems
Model #: HBL2620ST
Product Specifications
| Receptacle Type | Receptacle |
| Mount Type | Screw |
| Gender | Female |
| Material | Nylon |
| Color | Black |
| Flange Style | No Flange |
| Amperage | 30.0000 |
| Resistance Features | None |
| Recommended Environment | Indoor; Dry Locations |
| Receptacle Terminal Location | Back |
| Wire Connection Type | Spring Terminals |
| Number Of Poles | 2 |
| Number Of Wires | 3.000 |
| Overall Length | 3.28 |
| Overall Depth | 1.47 in |
| Overall Width | 2 |
| Wire Size | 14.000 |
| Voltage | 250.00 |
| Grade | Industrial |
| Grounding Style | Grounding |
| Shrouded | No |
| Features | 14 AWG - 10 AWG Solid; 14 AWG - 8 AWG Stranded |
| Standards | Listed to UL 498; Certified to CSA C22.2 No.42 |
| Nema Configuration | L6-30R |
| UNSPSC Code | 39122205 |
