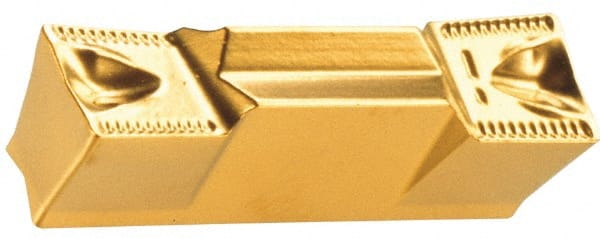

Iscar - 4002GRIP Y Grade IC354, 6mm Cutting Width Carbide Grooving Insert - 3.6mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiCN Finish
Item #: 83160317
Brand: Iscar
Model #: 6200126
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GRIP |
| Insert Size | 4002 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1420 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC354 |
| Coating | TiCN |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Chipbreaker | Y |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
