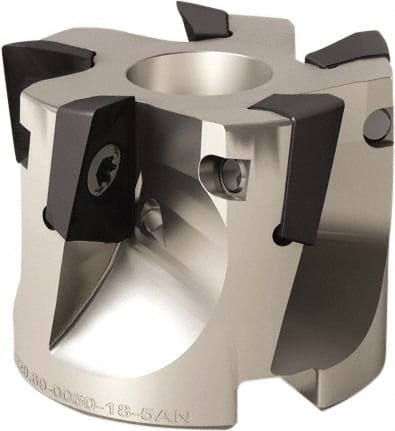

Seco - 11 Inserts, 5" Cut Diam, 1" Arbor Diam, 0.669" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2.48" High, XO.X 1806.. Insert Compatibility, Through Coolant, Series Power Turbo
Item #: 83250845
Brand: Seco
Model #: 55354
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | XO.X 1806.. |
| Series | Power Turbo |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 11 |
| Cutter Style | R220.69 |
| Maximum RPM | 5600 |
| Pitch | Close |
