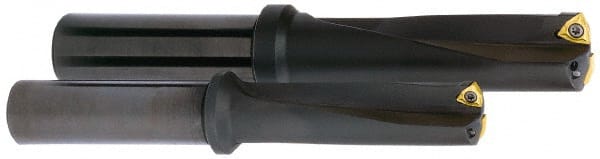

Kyocera - 4.31" Max Drill Depth, 3xD, 1-7/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Whistle Notch Shank
Item #: 83667394
Brand: Kyocera
Model #: 8600833
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 1-7/16 |
| Drill Diameter (Decimal Inch) | 1.4375 |
| Maximum Drill Depth (Decimal Inch) | 4.3100 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.0940 (Insert2); 0.1560 (Insert1) |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 7.5400 |
| Insert Compatibility (Outside or Peripheral) | WCGT 06T308-M1 |
| Insert Compatibility | WCMX 06T308-M1A |
| Body Length (Decimal Inch) | 5.2600 |
| Shank Length (Decimal Inch) | 2.2800 |
| Series | Holeshot |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
