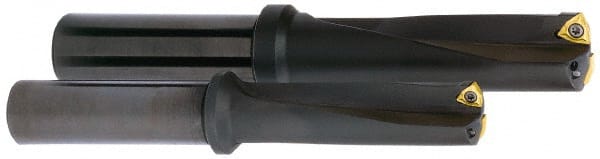

Kyocera - 5.91" Max Drill Depth, 3xD, 50mm Diam, Indexable Insert Drill - 4 Inserts, 1-1/2" Shank Diam, Whistle Notch Shank
Item #: 83667568
Brand: Kyocera
Model #: 8600890
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 50.00 |
| Drill Diameter (Decimal Inch) | 1.9685 |
| Maximum Drill Depth (Decimal Inch) | 5.9100 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.0940 (Insert2); 0.1250 (Insert1) |
| Number of Drill Inserts | 4 |
| Overall Length/Projection (Decimal Inch) | 9.9900 |
| Insert Compatibility (Outside or Peripheral) | WCGT 050308-M1 |
| Insert Compatibility | WCMX 050308-M1A |
| Body Length (Decimal Inch) | 7.3000 |
| Shank Length (Decimal Inch) | 2.6900 |
| Series | Holeshot |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
