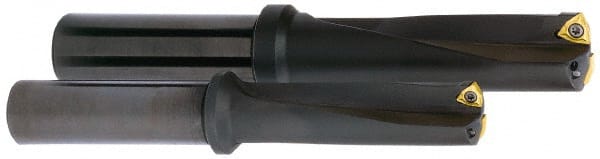

Kyocera - 6.66" Max Drill Depth, 3xD, 2-7/32" Diam, Indexable Insert Drill - 4 Inserts, 2" Shank Diam, Whistle Notch Shank
Item #: 83667642
Brand: Kyocera
Model #: 8600924
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 2-7/32 |
| Drill Diameter (Decimal Inch) | 2.2190 |
| Maximum Drill Depth (Decimal Inch) | 6.6600 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.0940 (Insert2); 0.1560 (Insert1) |
| Number of Drill Inserts | 4 |
| Overall Length/Projection (Decimal Inch) | 11.4400 |
| Insert Compatibility (Outside or Peripheral) | WCGT 06T308-M1 |
| Insert Compatibility | WCMX 06T308-M1A |
| Body Length (Decimal Inch) | 8.1900 |
| Shank Length (Decimal Inch) | 3.2500 |
| Series | Holeshot |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
