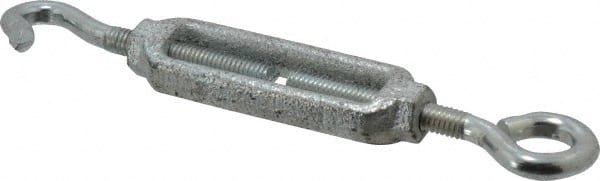

Made in USA - 112 (Hook) & 96 (Eye) Lb Load Limit, 5/16" Thread Diam, 2-9/16" Take Up, Malleable Iron Hook & Eye Turnbuckle - 3-7/16" Body Length, 7/32" Neck Length, 6-3/4" Closed Length
Item #: 83751768
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Hook and eye types have an open hook on one end and a closed loop on the other. This design provides quick attachment on the hook end and a secure connection on the eye end.
Malleable iron is a strong, relatively flexible iron-carbon alloy.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Hook & Eye |
| Working Load Limit (Lb.) | 112 (Hook); 96 (Eye) |
| Thread Diameter (Inch) | 5/16 |
| Take Up (Inch) | 2-9/16 |
| Body Length (Inch) | 3-7/16 |
| Closed Length (Inch) | 6-3/4 |
| Open Length (Inch) | 9-1/4 |
| Body Neck Length (Inch) | 7/32 |
| Body Material | Malleable Iron |
| Fittings Material | Steel |
| Eye Type | Round |
| Thread Size (Inch) | 5/16-18 |
| Body Finish/Coating | Zinc-Plated |
| Fittings Finish/Coating | Zinc-Plated |
