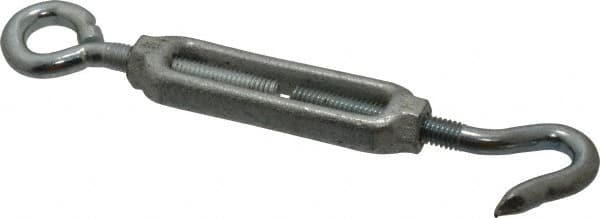

Made in USA - 144 (Eye) & 174 (Hook) Lb Load Limit, 3/8" Thread Diam, 2-7/8" Take Up, Malleable Iron Hook & Eye Turnbuckle - 3-7/8" Body Length, 1/4" Neck Length, 7-1/2" Closed Length
Item #: 83751776
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Hook and eye types have an open hook on one end and a closed loop on the other. This design provides quick attachment on the hook end and a secure connection on the eye end.
Malleable iron is a strong, relatively flexible iron-carbon alloy.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Hook & Eye |
| Working Load Limit (Lb.) | 144 (Eye); 174 (Hook) |
| Thread Diameter (Inch) | 3/8 |
| Take Up (Inch) | 2-7/8 |
| Body Length (Inch) | 3-7/8 |
| Closed Length (Inch) | 7-1/2 |
| Open Length (Inch) | 10-1/2 |
| Body Neck Length (Inch) | 1/4 |
| Body Material | Malleable Iron |
| Fittings Material | Steel |
| Eye Type | Round |
| Thread Size (Inch) | 3/8-16 |
| Body Finish/Coating | Zinc-Plated |
| Fittings Finish/Coating | Zinc-Plated |
