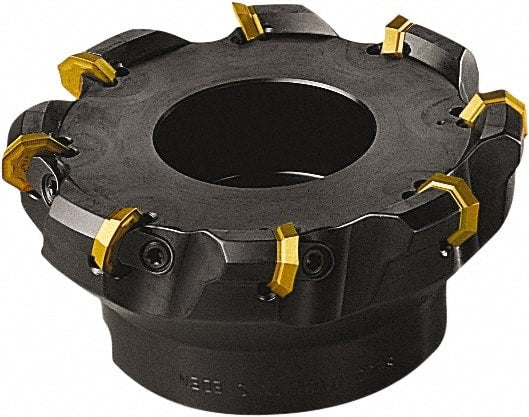

Seco - 172mm Cut Diam, 40mm Arbor Hole, 5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 10 Inserts, OF.. 0704 Insert, Right Hand Cut, 10 Flutes, Series OctoMill
Item #: 83801472
Brand: Seco
Model #: 05695
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 172.00 |
| Cutting Diameter (Decimal Inch) | 6.7717 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 43 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | OF.. 0704 |
| Series | OctoMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Wedge |
| Number of Flutes | 10 |
| Cutting Rake Angle | 15 |
| Rake | Positive |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum Body Diameter (Decimal Inch) | 6.2992 |
| Maximum RPM | 3500 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | OFEN 070405TN-D18; OFER 070405N-E07; OFER 070405N-M10; OFER 070405TN-M16; OFER 070405TN-ME10; OFER 070405TN-ME15; OFET 070405TN-M16; OFET 070405TN-ME10; OFET 070405TN-ME15; OFEW 070405TN-D18; OFMR 070405TR-M15; OFMR 070405TR-ME13; OFMT 070405TN-M15 |
