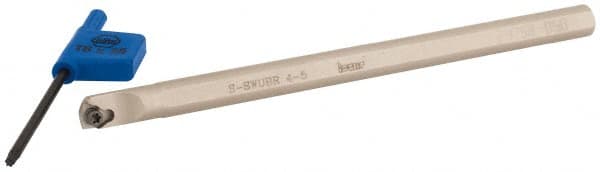

Iscar - 0.275" Min Bore Diam, 4" OAL, 1/4" Shank Diam, S-SWUB Indexable Boring Bar - WB.. 520L Insert, Screw or Clamp Holding Method
Item #: 83817270
Brand: Iscar
Model #: 3601806
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SWUB |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.2750 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | WB.. 520L |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.1400 |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Rake Angle | -12 |
| Complete Insert Compatibility | WBGT 520L; WBMT 52.004L |
| Toolholder Material | Steel |
