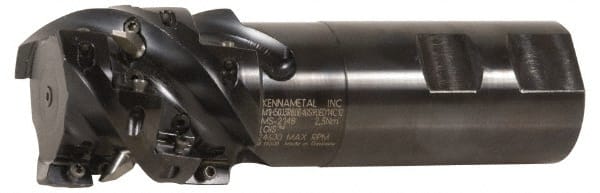

Kennametal - 32mm Cut Diam, 27.8mm Max Depth of Cut, 32mm Shank Diam, 111mm OAL, Indexable Square Shoulder Helical End Mill - EC14.., EP14.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant
Item #: 83992610
Brand: Kennametal
Model #: 3742932
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Overall Length/Projection (mm) | 111.00 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 27.80 |
| Maximum Depth of Cut (Decimal Inch) | 1.094 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | Mill 1-14 |
| Number of Flutes | 2 |
| Head Length (mm) | 50.00 |
| Weldon Flat | Yes |
| Insert Compatibility | EC14.., EP14.. |
| Maximum RPM | 31100 |
| Coolant Hole Diameter (mm) | 2.00 |
