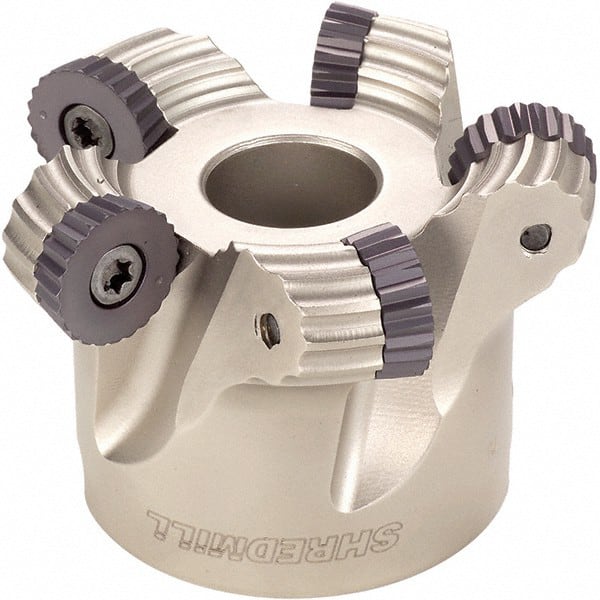

Iscar - 4" Cut Diam, 0.39" Max Depth, 1-1/2" Arbor Hole, 6 Inserts, RC.. Insert Style, Indexable Copy Face Mill - FRW Cutter Style, 2" High, Series MillShred
Item #: 84008879
Brand: Iscar
Model #: 3104135
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | MillShred |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RC.. |
| Cutter Style | FRW |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (Decimal Inch) | 0.7870 |
| Complete Insert Compatibility | RCMT/RCCT-MO; RCMT/RCMW/RCCW-FW; RCMW/RCCW-MO |
