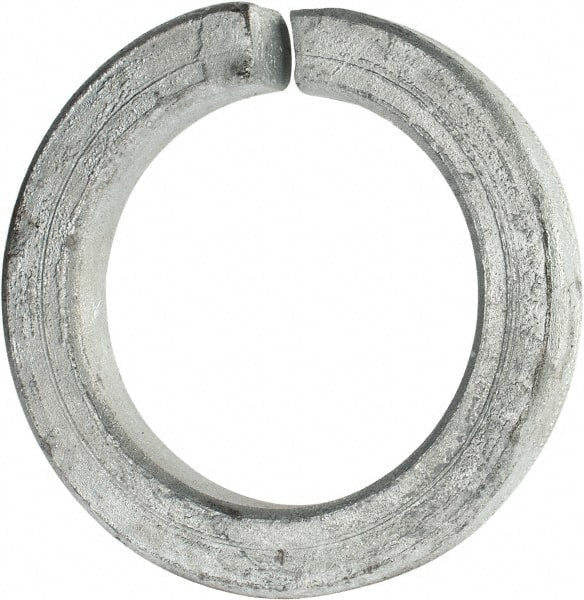

Value Collection - 2", 2.028" ID, 0.422" Thick Split Lock Washer - Grade 8 Spring Steel, Hot Dipped Galvanized Finish, 2.028" Min ID, 2.059" Max ID, 2.956" Max OD
Item #: 84020338
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 2 |
| Material | Spring Steel |
| Material Grade | Grade 8 |
| Finish/Coating | Hot Dipped Galvanized |
| Inside Diameter (Decimal Inch) | 2.0280 |
| Thickness (Decimal Inch) | 0.4220 |
| Minimum Inside Diameter (Decimal Inch) | 2.0280 |
| Maximum Inside Diameter (Decimal Inch) | 2.0590 |
| Maximum Outside Diameter (Decimal Inch) | 2.9560 |
| Military Specification | Does Not Meet Military Specifications |
