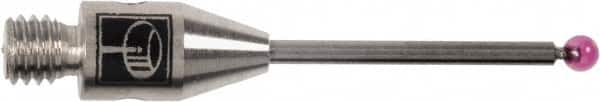

Renishaw - 0.02 Inch Ball Diameter, Carbide Stem, M2 Thread, Ruby Point Ball Tip CMM Stylus - 0.28 Inch Working Length, 0.012 Inch Stem Diameter, 0.79 Inch Overall Length
Item #: 84070440
Brand: Renishaw
Model #: A-5003-1345
Exact Tooling IR#: 04
Features and Benefits
The stylus is the spherical portion or tip of the probe that makes contact with the workpiece surface. It is commonly made of a synthetic ruby and mounted on a stem.
Ball styles are the most commonly used and probe X, Y and Z axis.
| Product Specifications | |
|---|---|
| Stylus or Probe | Stylus |
| Stylus Type | Ball |
| Stylus Thread Size | M2 |
| Point Material | Ruby |
| Ball Diameter (mm) | 0.50 |
| Ball Diameter (Decimal Inch) | 0.0200 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7900 |
| Stem Material | Carbide |
| Stem Diameter (mm) | 0.30 |
| Stem Diameter (Decimal Inch) | 0.0120 |
| Effective Working Length (mm) | 7.00 |
| Effective Working Length (Decimal Inch) | 0.2800 |
