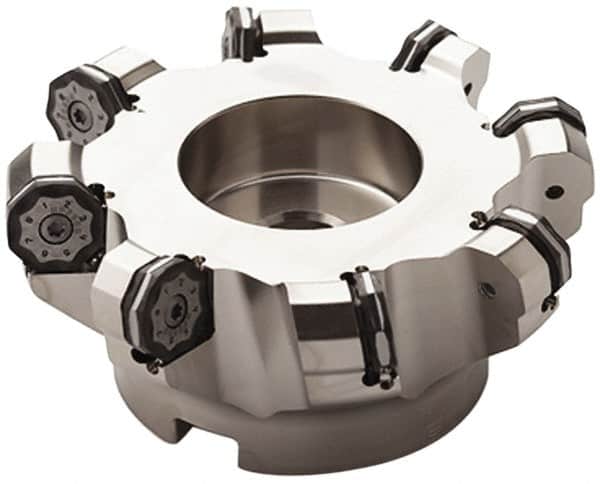

Seco - 2.48" Cut Diam, 3/4" Arbor Hole, 0.236" Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill - 5 Inserts, ON.U.09 Insert, Right Hand Cut, 10 Flutes, Series R220.48
Item #: 84125020
Brand: Seco
Model #: 45131
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.4800 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 40 |
| Overall Height (Decimal Inch) | 1.5750 |
| Insert Compatibility | ON.U.09 |
| Series | R220.48 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 5 |
| Number of Flutes | 10 |
| Maximum Body Diameter (Decimal Inch) | 3.0700 |
| Maximum RPM | 4900 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
