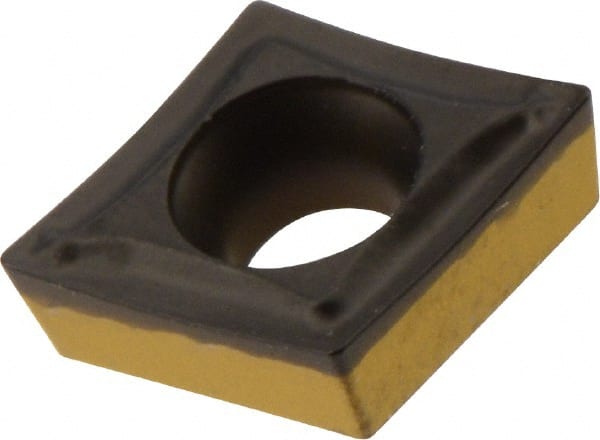

Iscar - CCMT2-0 SM Grade IC8150 Carbide Turning Insert - TiCN/Al2O3/TiCN/TiN Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.0079" Corner Radius
Item #: 84234095
Brand: Iscar
Model #: 5508200
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 2-0 |
| Material | Carbide |
| Length (mm) | 6.30 |
| Length (Decimal Inch) | 0.2480 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3/TiCN/TiN |
| Chip Breaker | SM |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Shape | Diamond |
