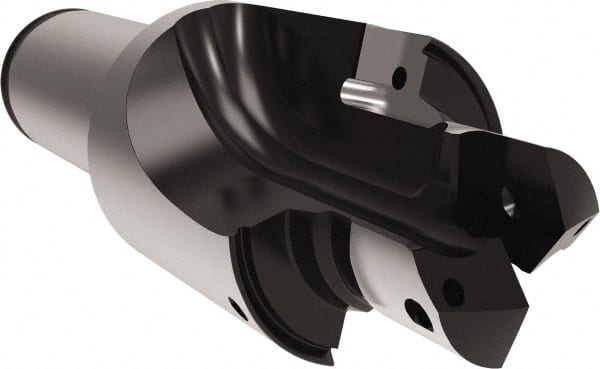

Allied Machine and Engineering - M16x1.50, 0.571" Pilot Diam, 1.102" Spotface Diam, 0.615" Pilot Length, Tube Dash 6, Indexable Porting Tool
Item #: 84442284
Brand: Allied Machine and Engineering
Model #: I6149-06R0-20FM
Product Specifications
| Port Standard Designation | ISO 6149-1:1993; SAE J2244-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | M16x1.50 |
| Tube Dash Number | 6 |
| Pilot Diameter (Decimal Inch) | 0.5710 |
| Spotface Diameter (Decimal Inch) | 1.1020 |
| Pilot Length (Decimal Inch) | 0.6150 |
| Shank Diameter (Inch) | 0.7870 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | I6149-06-C3H; I6149-06-C5A; I6149-06R-C3H; I6149-06R-C5A |
| Porting Diameter (Decimal Inch) | 0.7020 |
| Overall Length (Decimal Inch) | 3.5070 |
| Through Coolant | Through Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1020 |
| Head Length (Decimal Inch) | 1.8570 |
| Shank Length (Decimal Inch) | 1.6500 |
| Spotface to Shoulder Length (Decimal Inch) | 1.1160 |
| Series | AccuPort 432 |
