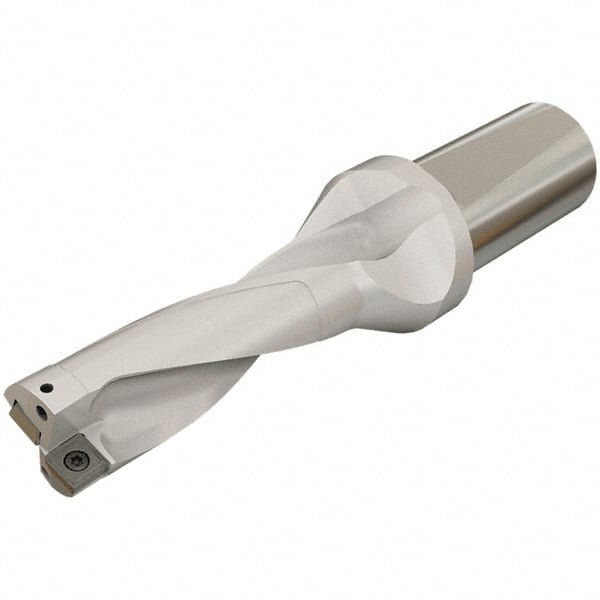

Iscar - 66mm Max Drill Depth, 3xD, 22mm Diam, Indexable Insert Drill - 25mm Shank Diam, Whistle Notch Shank
Item #: 84449867
Brand: Iscar
Model #: 3201381
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 22.00 |
| Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Depth (mm) | 66.00 |
| Maximum Drill Depth (Decimal Inch) | 2.5984 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 81.00 |
| Overall Length/Projection (Decimal Inch) | 3.1890 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF; SOMX-HD |
| Body Length (Decimal Inch) | 3.3858 |
| Body Length (mm) | 86.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Collar Diameter (mm) | 32.00 |
| Collar Diameter (Decimal Inch) | 1.2598 |
| Series | DR-TWIST |
