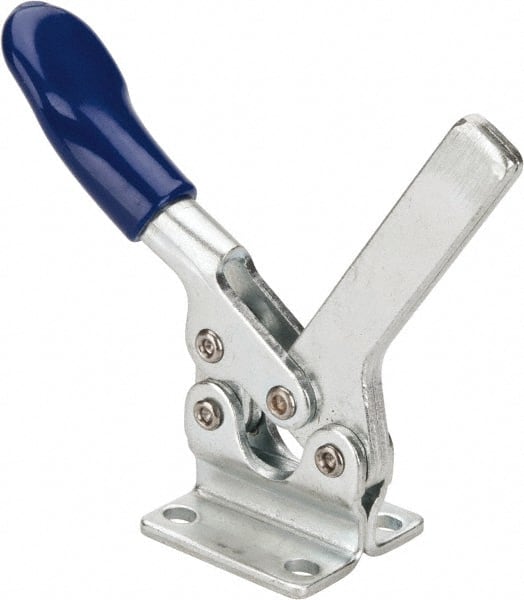

Gibraltar - 200 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp - 78° Handle Movement, 87° Bar Opening, Solid Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel
Item #: 84520428
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Horizontal handles are designed with a handle that is parallel to the clamping bar and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 2,400 pounds.
Solid Bars are designed to retain a spindle that is fixed to a specific position on the bar. The spindle retainers are commonly welded to the bar of the clamp at a customer specified position. Generally, the solid bar models have greater holding capacity than the equivalent U-bar model.
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Handle Orientation | Horizontal |
| Bar Style | Solid |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (N) | 890.00 |
| Holding Capacity (Lb.) | 200.00 |
| Length Distance Between Mount Holes (mm) | 36.32 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.43 |
| Width Distance Between Mount Holes (mm) | 22.10 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.8700 |
| Height Under Bar (mm) | 25.40 |
| Height Under Bar (Decimal Inch) | 1.0000 |
| Overall Length (mm) | 138.68 |
| Overall Length (Decimal Inch) | 5.4600 |
| Overall Height (mm) | 38.86 |
| Overall Height (Decimal Inch) | 1.5300 |
| Base Length (mm) | 36.32 |
| Base Length (Decimal Inch) | 1.4300 |
| Base Width (mm) | 35.05 |
| Base Width (Decimal Inch) | 1.3800 |
| Handle Style | Straight |
| Material | Carbon Steel |
| Handle Color | Red |
| Finish/Coating | Electro-Plated Zinc |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter (Decimal Inch) | 0.2000 |
| Front of Base To Tip Of Toggle Bar (mm) | 57.15 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.2500 |
| Bar Opening (Degrees) | 87.00 |
| Handle Movement (Degrees) | 78.00 |
| Maximum Mechanical Advantage | 6:1 |
| Spindle Thread Size | M6x1.0 |
| Spindle Length (mm) | 44.00 |
| Bar Width (Decimal Inch) | 0.5000 |
| Bar Width (mm) | 12.70 |
| Bar Thickness (mm) | 4.80 |
| Bar Thickness (Decimal Inch) | 0.1890 |
| Handle Width (Decimal Inch) | 0.7300 |
| Includes | (1) Spindle; (2) Nuts; (1) Bolt Retainer |
