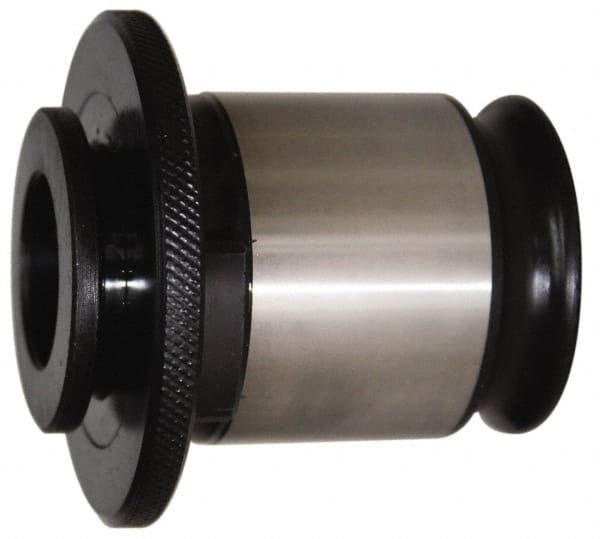

Accupro - 0.194" Tap Shank Diam, 0.152" Tap Square Size, #10 Tap, #0 Tapping Adapter - 0.2756" Projection, 0.5906" Tap Depth, 26.5mm OAL, 13mm Shank OD, Series WE 0
Item #: 84531581
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tap Size (Inch) | #10 |
| Adapter Size | 0 |
| Tap Shank Diameter (Decimal Inch) | 0.1940 |
| Tap Square Size (Decimal Inch) | 0.1520 |
| Quick Change | Yes |
| Projection (mm) | 7.00 |
| Projection (Decimal Inch) | 0.2756 |
| Tap Depth (mm) | 15.00 |
| Tap Depth (Decimal Inch) | 0.5906 |
| Series | WE 0 |
| Overall Length (mm) | 26.50 |
| Flange Diameter (mm) | 22.00 |
| Outside Shank Diameter (mm) | 13.00 |
| Through Coolant | No |
| PSC Code | 5136 |
