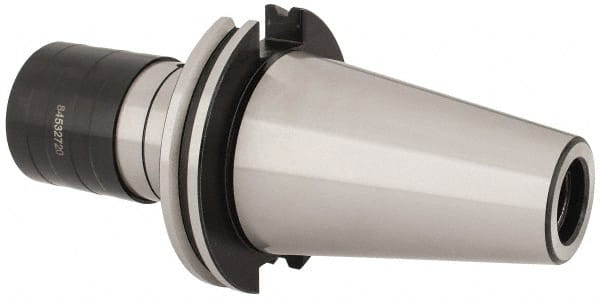

Accupro - CAT50 Taper Shank Tension & Compression Tapping Chuck - 1/4 to 7/8" Tap Capacity, 102.5mm Projection, Size 2 Adapter, Quick Change, Through Coolant
Item #: 84532720
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Minimum Tap Capacity (mm) | M8 |
| Minimum Tap Capacity (Inch) | 1/4 |
| Maximum Tap Capacity (Inch) | 7/8 |
| Maximum Tap Capacity (mm) | M20 |
| Projection (Decimal Inch) | 4.0354 |
| Projection (mm) | 102.50 |
| Quick Change | Yes |
| Hole Diameter (mm) | 31.00 |
| Adapter Size | 2 |
| Nose Diameter (mm) | 53.00 |
| Nose Diameter (Decimal Inch) | 2.0866 |
| Tension (mm) | 12.50 |
| Compression (mm) | 12.50 |
| Through Coolant | Yes |
