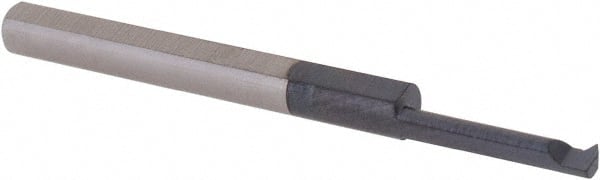

Single Point Theading Tool: 0.09″ Min Thread Dia, 32 to 64 TPI, 0.4″ Cut Depth, Internal, Solid Carbide 1/8″ Shank, 1-1/2″ OAL, 60 ° Profile, 0.025″ Projection from Edge, AlTiN+ Finish
Item #: 84607043
Brand: Scientific Cutting Tools
Model #: TT090400A
Product Specifications
| Thread Type | Internal |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (Decimal Inch) | 0.0900 |
| Cutting Depth (Decimal Inch) | 0.4000 |
| Maximum Threads Per Inch | 64 |
| Minimum Threads Per Inch | 32 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Projection from Edge (Decimal Inch) | 0.0250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Coating/Finish | AlTiN+ |
| Coolant Through | No |
