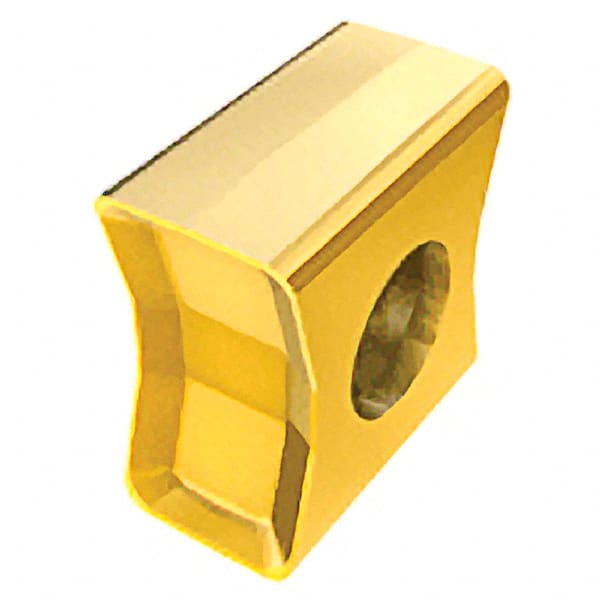

Iscar - LNMT1106 MM Grade IC4050 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.4331" Thick, 0.8mm Corner Radius
Item #: 84641828
Brand: Iscar
Model #: 5604368
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMT |
| Insert Size | 1106 |
| Material | Carbide |
| Manufacturer's Grade | IC4050 |
| Coating | TiCN/Al2O3/TiN |
| Width (Decimal Inch) | 0.2362 |
| Length (Decimal Inch) | 0.4394 |
| Thickness (Decimal Inch) | 0.4331 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| ISO Number | LNMT 1106PN-N MM |
