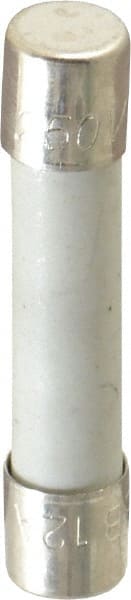

Cooper Bussmann - 125 VDC, 250 VAC, 12 Amp, Fast-Acting Miniature Ceramic Fuse - 1-1/4" OAL, 1/4" Diam
Item #: 84680610
Brand: Cooper Bussmann
Model #: GBB-12R
Exact Tooling IR#: 04
Features and Benefits
Miniature ceramic fuses are constructed of a conductive metal placed on a small ceramic body. They are more durable than glass bodies and are commonly used in appliances and electronics.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Miniature Ceramic |
| Amperage | 12 |
| Voltage | 125 VDC; 250 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 31-3/4 |
| Overall Length (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 1.2500 |
| Overall Diameter (mm) | 6.35 |
| Overall Diameter (Inch) | 1/4 |
| Overall Diameter (Decimal Inch) | 1/4 |
| Material | Ceramic |
| Interrupting Rating (A) | 10000 @ 125 V; 200 @ 250 V |
| Standards Met | CSA Class 1422-30 File 53787 Component Accepted; RoHS Compliant; UL Recognized 248-14; UL Recognized Guide JFHR2 E56412 |
