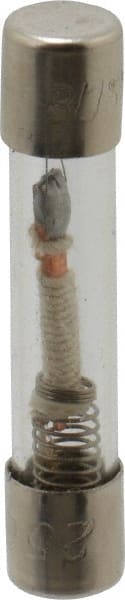

Cooper Bussmann - 250 VAC, 32 VDC, 0.25 Amp, Time Delay Miniature Glass Fuse - 1-1/4" OAL, 1/4" Diam
Item #: 84682665
Brand: Cooper Bussmann
Model #: MDQ-1/4
Exact Tooling IR#: 04
Features and Benefits
Miniature glassfuses are constructed of a conductive metal placed on a small glass body. Fuses with glass bodies are easier to see if they are blown. They are commonly used in appliances and electronics.
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | Miniature Glass |
| Amperage (mA) | 250 |
| Amperage | 0.25 |
| Voltage | 250 VAC; 32 VDC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 31-3/4 |
| Overall Length (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 1.2500 |
| Overall Diameter (mm) | 6.35 |
| Overall Diameter (Inch) | 1/4 |
| Overall Diameter (Decimal Inch) | 1/4 |
| Material | Glass |
| Number of Elements | 2 |
| Interrupting Rating (A) | 35 @ AC |
| Standards Met | CSA Class 1422-01 Component Accepted; UL Listed 248-14; UL Listed Guide JDYX File E19180 |
