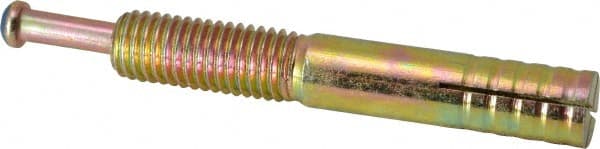

Wej-It - 5/8" Diam, 5/8" Drill, 4" OAL, 3-1/2" Min Embedment Hammer Drive Concrete Anchor - Grade 5 Iron (Pin)/Steel (Body), Zinc Yellow Dichromate Finish, Hex Nut Head, Hex Drive
Item #: 84690536
Brand: Wej-It
Model #: CP5840
Exact Tooling IR#: 04
Features and Benefits
Hammer drive concrete anchors are tamperproof anchors used in concrete, block, brick and stone. They have an anchor body and a steel pin. The pin is hammered flush to the anchor head, which then expands the anchor body.
| Product Specifications | |
|---|---|
| Type | Hammer Drive |
| Diameter (Inch) | 5/8 |
| Drill Size (Inch) | 5/8 |
| Overall Length (Inch) | 4 |
| Minimum Embedment (Inch) | 2-3/4 |
| Material | Iron (Pin); Steel (Body) |
| Material Grade | Grade 5 |
| Finish/Coating | Zinc Yellow Dichromate |
| Head Type | Hex Nut |
| Drive Type | Hex |
| Fastener Standard | ANSI B212.15 |
| System of Measurement | Inch |
