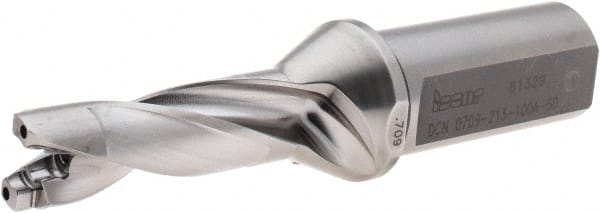

Iscar - 0.709" to 0.744" Diam, 3xD, 2.13" Max Depth, 1" Shank Diam, 5.45" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 84853050 Toolholder, Series SumoCham
Item #: 84853050
Brand: Iscar
Model #: 3260097
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.7090 |
| Maximum Drill Diameter (Decimal Inch) | 0.7440 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.1300 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 3.2500 |
| Overall Length (Decimal Inch) | 5.4500 |
| Shank Length (Decimal Inch) | 2.2000 |
