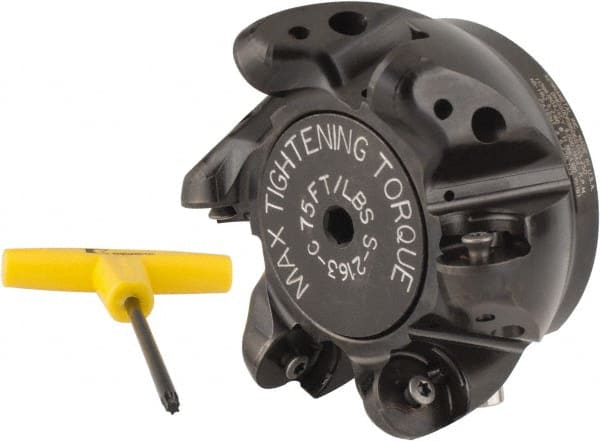

Kennametal - 5" Cut Diam, 12.7mm Max Depth, 1-1/2" Arbor Hole, 6 Inserts, RCGT 86... Insert Style, Indexable Copy Face Mill - BMD500 Cutter Style, 9,000 Max RPM, 2-1/2 High, Series KSRM
Item #: 84890318
Brand: Kennametal
Model #: 2610697
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (mm) | 63.50 |
| Overall Height (Inch) | 2-1/2 |
| Overall Height (Decimal Inch) | 2.5000 |
| Series | KSRM |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RCGT 86... |
| Cutter Style | BMD500 |
| Maximum RPM | 9000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.8100 |
| Insert Inscribed Circle (Inch) | 1 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RCGT 86ELF |
