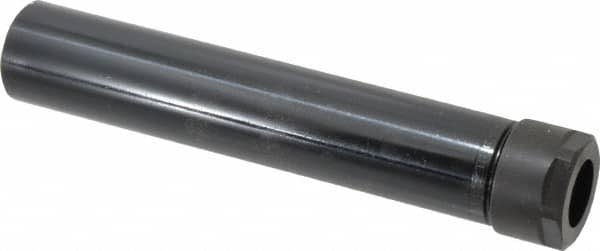

CRAFTSMAN Industries - 0.039" to 0.63" Capacity, Straight Shank, ER25 Collet Chuck - 7.25" OAL, 1-1/4" Shank Diam
Item #: 84904580
Brand: CRAFTSMAN Industries
Model #: PCH-ER25-1250
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0390 |
| Maximum Collet Capacity (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 7.2500 |
| Nose Type | Stub Nose |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 6.4100 |
| Hex Diameter (Inch) | 1-1/4 |
| PSC Code | 5136 |
| Collet Nut Diameter (Decimal Inch) | 1.3600 |
