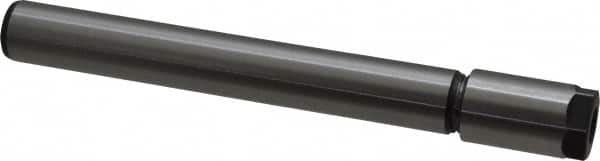

Kennametal - 1/64" to 25/64" Capacity, 1.69" Projection, Straight Shank, DA200 Collet Chuck - 7.13" OAL, 3/4" Shank Diam
Item #: 84908011
Brand: Kennametal
Model #: 1015337
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA200 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Projection (Decimal Inch) | 1.6900 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 1/64 |
| Minimum Collet Capacity (mm) | 0.40 |
| Maximum Collet Capacity (mm) | 9.92 |
| Maximum Collet Capacity (Inch) | 25/64 |
| Overall Length (Decimal Inch) | 7.1300 |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 5.4400 |
| Head Length (Inch) | 1-5/8 |
| Hex Diameter (Decimal Inch) | 0.8400 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.8100 |
