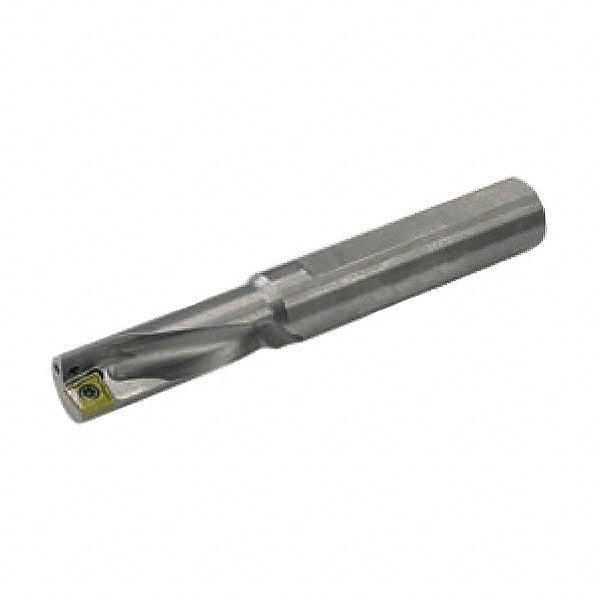

Allied Machine and Engineering - 1.89" Max Drill Depth, 3xD, 18mm Diam, Indexable Insert Drill - 1 Insert, 3/4" Shank Diam, Straight Shank
Item #: 84922004
Brand: Allied Machine and Engineering
Model #: 11147333
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 18.00 |
| Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Depth (Decimal Inch) | 1.8900 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.3150 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 0.7280 |
| Overall Length/Projection (Decimal Inch) | 4.3300 |
| Insert Compatibility | XCET 080304FN-27P; XCET 080304FN-27Q; XCNT 080304EN; XCNT 080304EN-M50Q |
| Flute Length (Decimal Inch) | 1.8900 |
| Shank Length (Decimal Inch) | 2.4400 |
| Series | EcoCut Classic |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
